Tuya Smartlife H.265 4CH 1080P WiFi Kit Security Home Wireless CCTV Camera with DVR
Tuya Smartlife H.265 4CH 1080P WiFi Kit Security Home Wireless CCTV Camera with DVR
Couldn't load pickup availability
Tuya Smartlife H.265 4CH 1080P WiFi Kit Security Home Wireless CCTV Camera with DVR
Key Features:

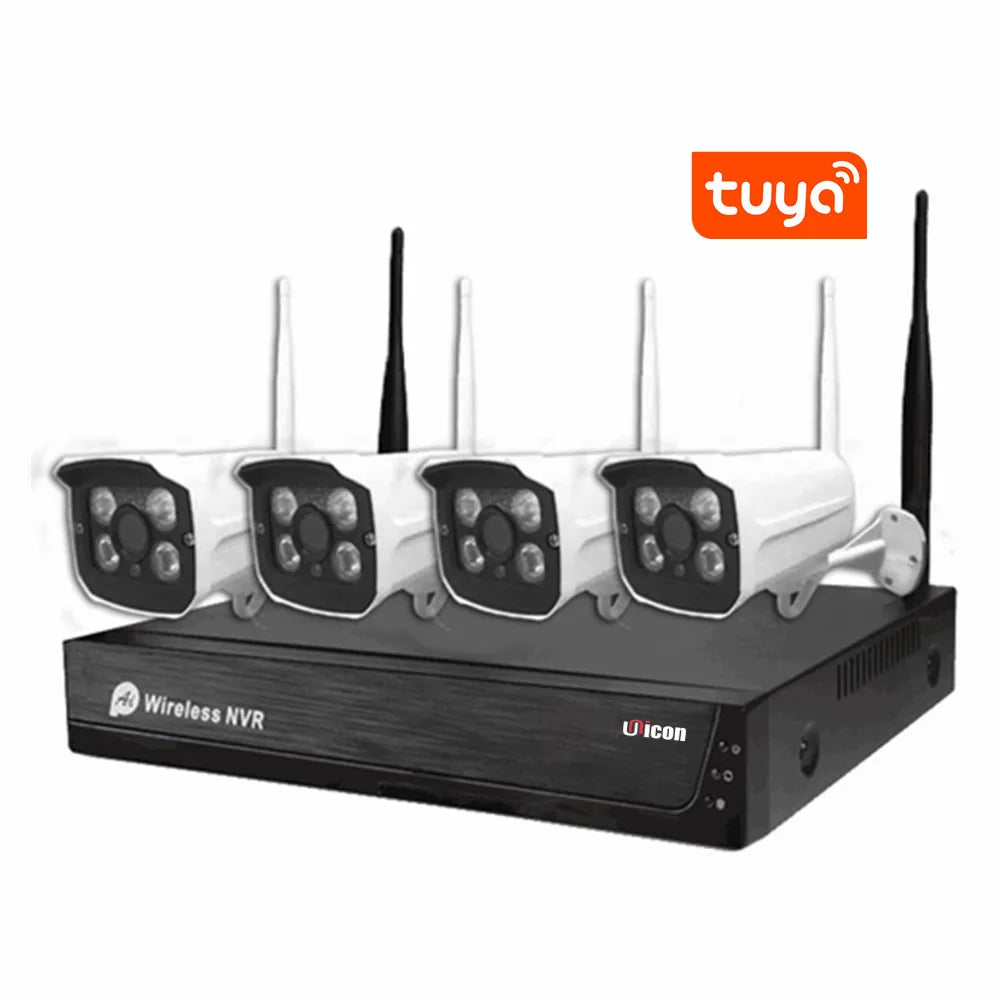

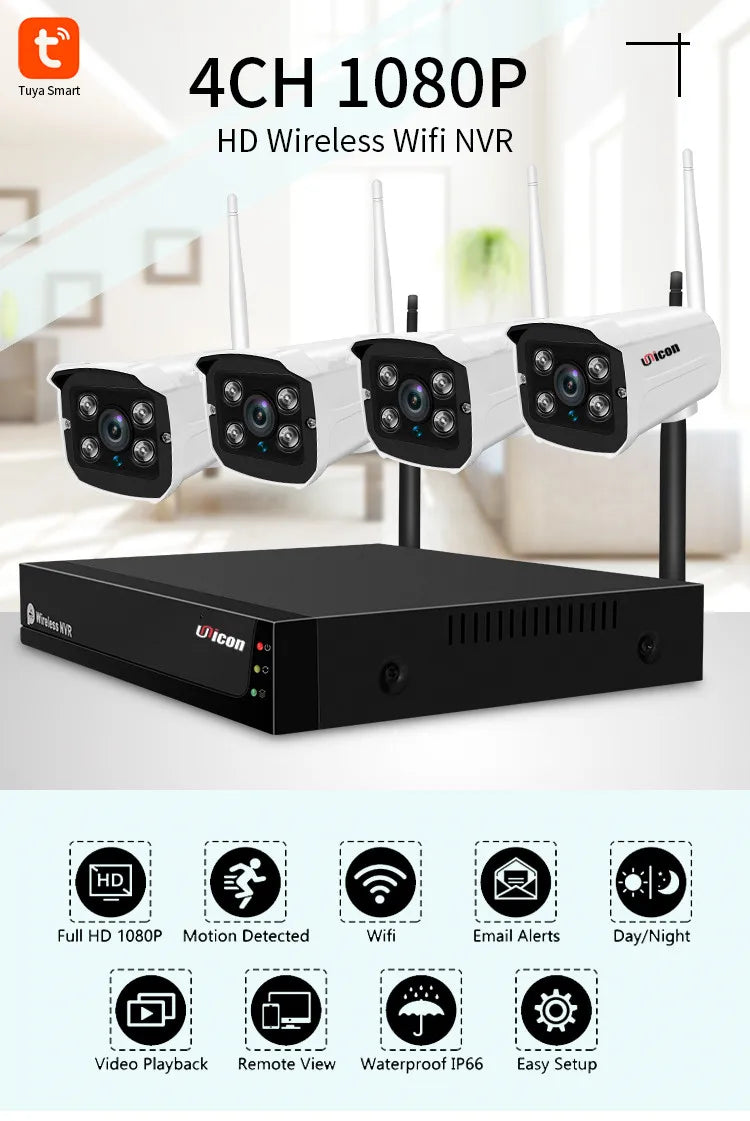

* 4CH 2MP wifi NVR kit
* 802.11b/g/n ;150Mbps;2.4G wireless
* 4CH 1080P@25fps video input and 4CH playback
* Support HDMI/VGA;1 SATA max 4T
* Support 1 RJ45;1 USB interface;2 wifi antenna * With 1m reticle*1;Power adaptor(1m cord)*5;Mouse*1
* With 4pcs 1080P IR bullet cameras fixed lens 3.6mm
* 4pcs IR array IR distance 20m
Specification :
| Model |
Wifi NVR |
| Operating System |
Embedded Linux OS |
| AV(video)input |
|
| Network Video |
4CH |
| Network video input broad bank |
10Mbps |
| AV (video) output |
|
| HDMI input |
1ch,resolution:1024x768,1366x768,1440x900,1920x1080p |
| VGA output |
1ch,resolution:1024x768,1366x768,1440x900,1920x1080p |
| AV CODEC Specification |
|
| Video Resolution |
1080P |
| synch-playback |
4CH |
| Video Control |
|
| Video/Capture mode |
Manual,Time,Motion,Alarm |
| Playback mode |
Real time,Routine,Event |
| Backup |
USB backup |
| Alarm |
|
| Alarm Input |
4ch (optional) |
| Alarm Output |
1ch (optional) |
| Hard Disk |
|
| Type |
1*SATA interface |
| Max Capacity |
4 TB at most for each |
| External Interface |
|
| Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface |
2 USB 2.0 |
| Network Control |
|
| Protocol |
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
| Others |
|
| Power Supply |
DC12V3A |
| Power Consumption (W) |
≤5W(Without HDD) |
| Operate Temperature (°C) |
-10℃~+55℃ |
| Working Humidity (%) RH |
10%~90% |
| Size |
257mm(W)×210mm(V)×45mm(H) |
| Weight(excluding HDD) |
≤1Kg |
| Model |
Wifi Camera |
| Technical Parameters |
|
| Sensor |
1/4” Progressive Scan Sensor |
| Signal System |
PAL/NTSC |
| Resolution |
1080P; 1920 x 1080 16 : 9 High Defination |
| Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
| Shutter |
1/25s to 1/25,000s |
| Lens |
3.6/4/6mm (optional) |
| OSD |
Date Time & Title |
| White Balance |
Auto |
| Day&Night |
Auto / Color / BW |
| 3D-DNR |
Auto |
| Mirror/Flip |
On / Off |
| Frame Specification |
Three Streaming at the Same Time: |
| S/N |
> 39.1 Db |
| Interface |
RJ45 / WIFI 802.11b/g/n |
| General Specification |
|
| Anti-thunder Level |
Standard IEC61000-4-5 |
| Ambient Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
